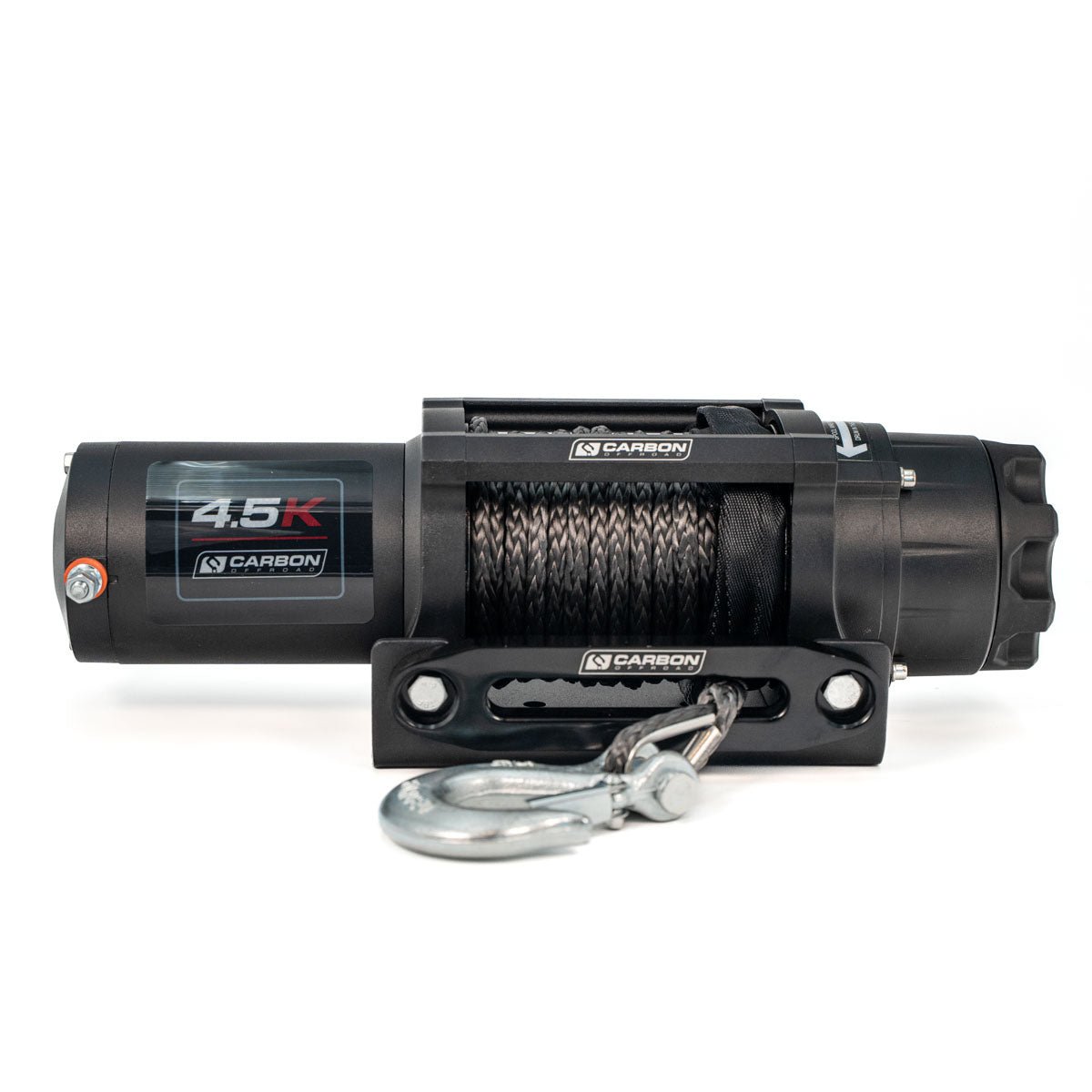

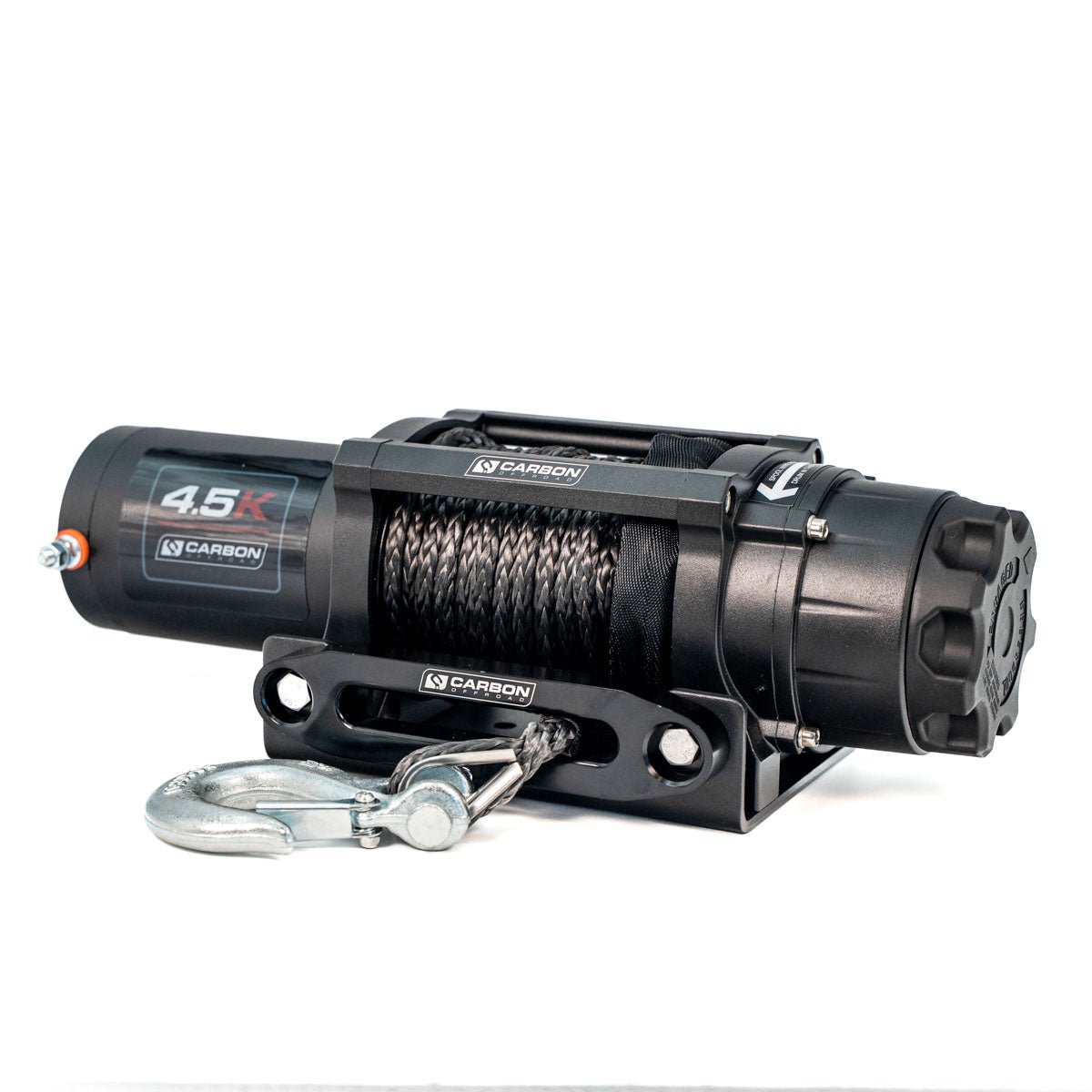

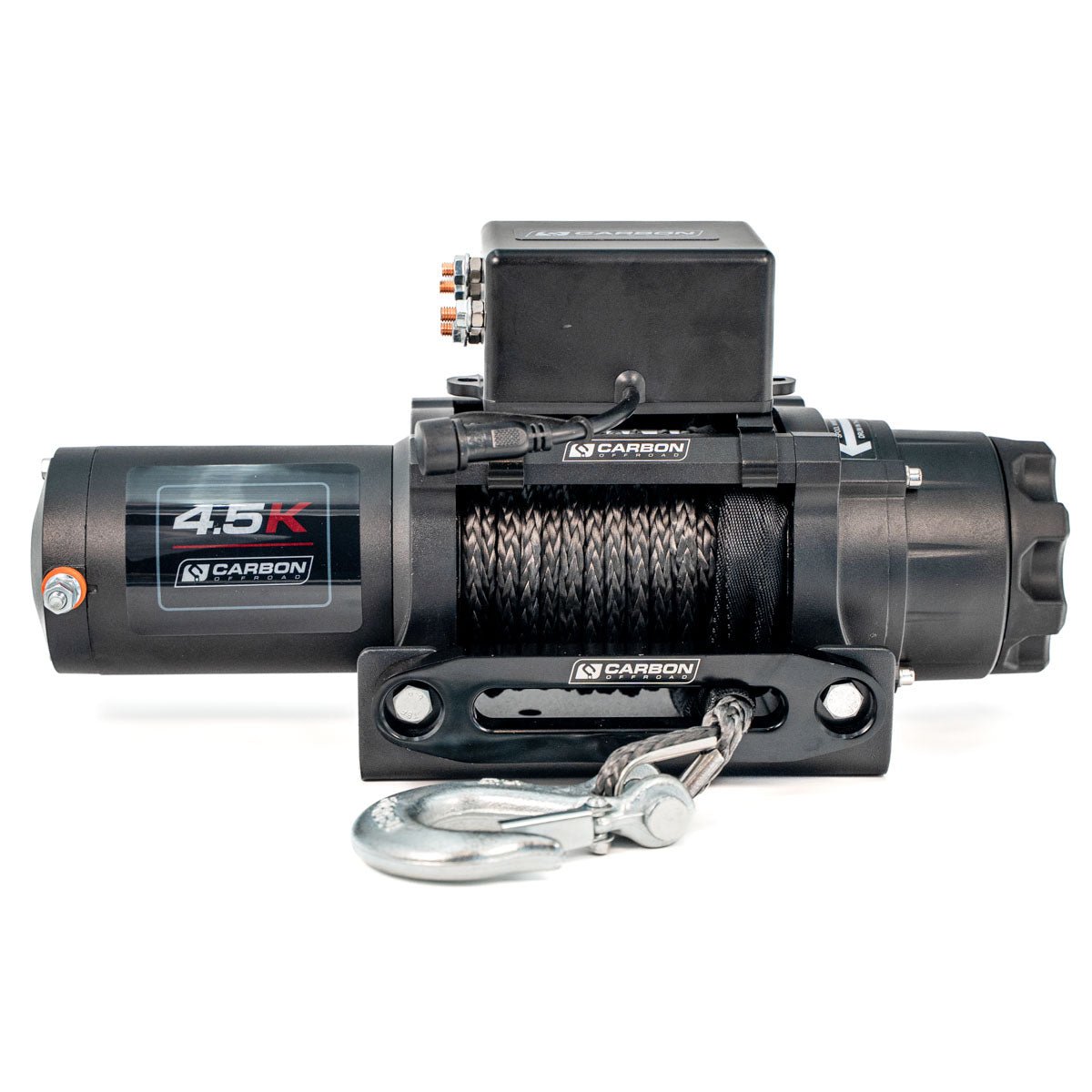

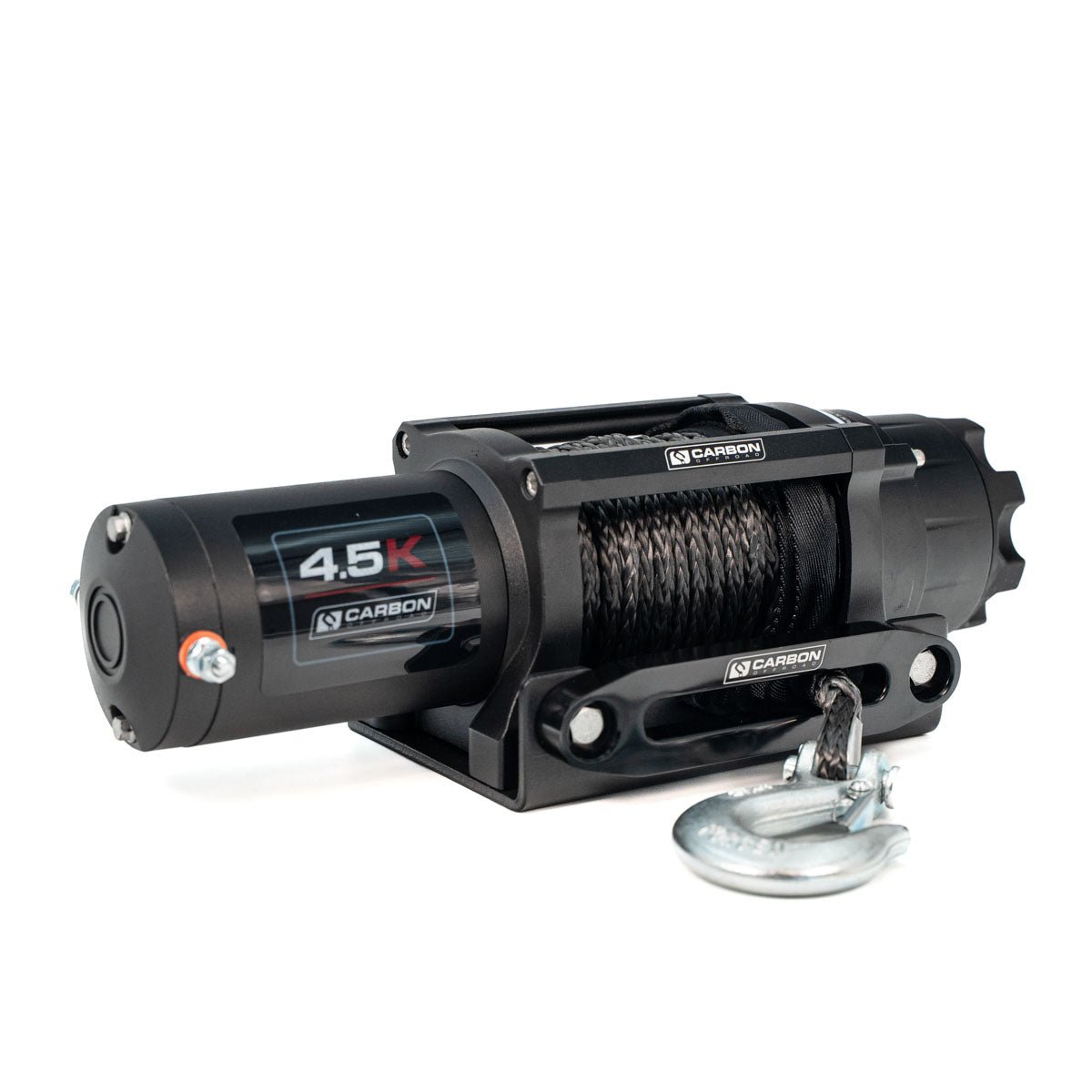

Carbon 4.5k 4500lb ATV/Trailer Winch

Carbon 4.5k 4500lb ATV/Trailer Winch

$349.00 USD
$349.00 USD
Shipping calculated at checkout.

Fitment Notice: Please verify compatibility with your vehicle before ordering. If you're unsure whether this product fits your Tacoma, contact us in the chatbot and we'll help confirm.

Vehicle modifications may affect product compatibility.

Built for heavier side-by-sides and utility vehicles, the ATV 4.5K offers 4,500lb capacity and a compact, rugged build. Designed for ATVs, UTVs, side-by-sides, car trailers and equipment transport; this winch is ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.

  • 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
  • 1.9HP Motor – Compact with reliable pulling power
  • 176:1 Gear Ratio – Strong, controlled operation
  • 43ft (13m) Synthetic Rope – Lightweight and durable
  • Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
  • Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
  • Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
  • IP66 Rated winch and solenoid (excludes remote control and switch)
  • Wired + Wireless Remotes – Flexible control options
12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0  20.4(6.2) 31 Amps 1/4500(2040)
1000 14.2(4.3) 65Amps 2/3750(1700)
2000 10.9(3.3) 96Amps 3/3510(1595)
3000 7.7(2.4) 125Amps 4/3300(1500)
4500 4.9(1.5) 175.Amps
