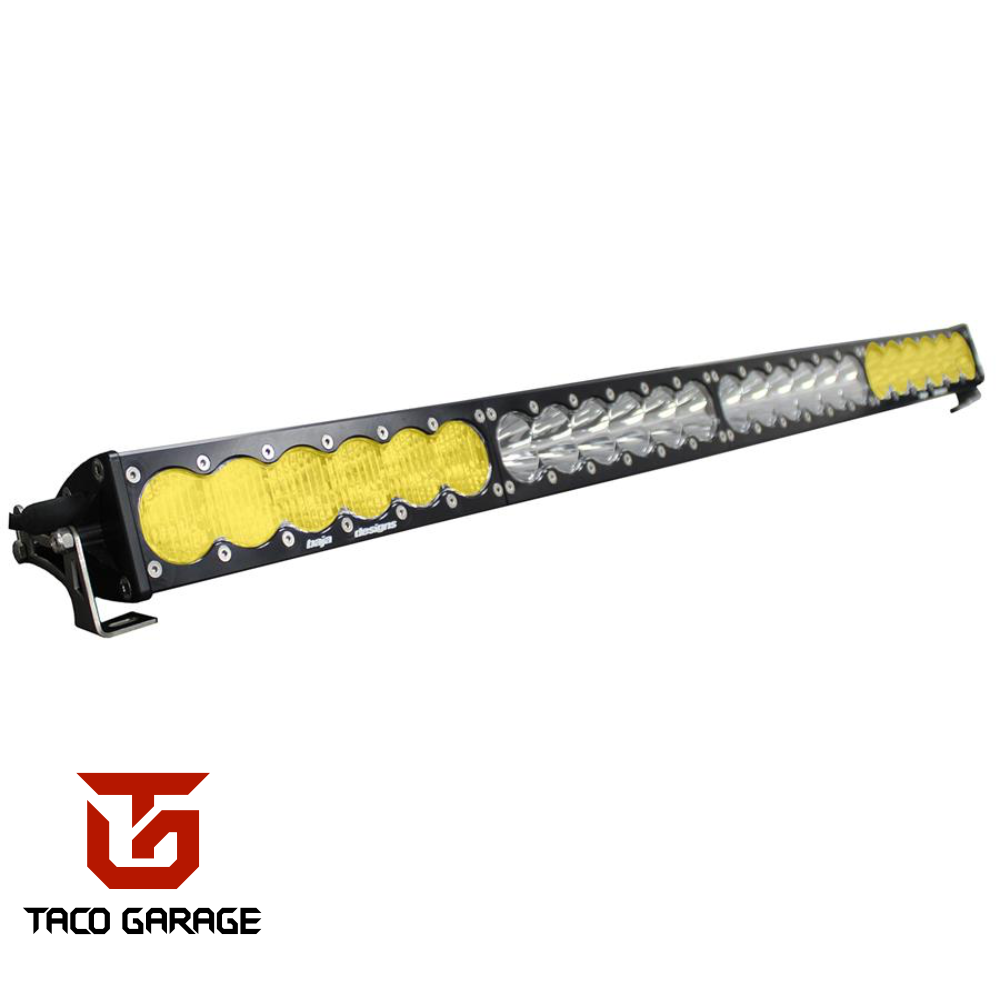

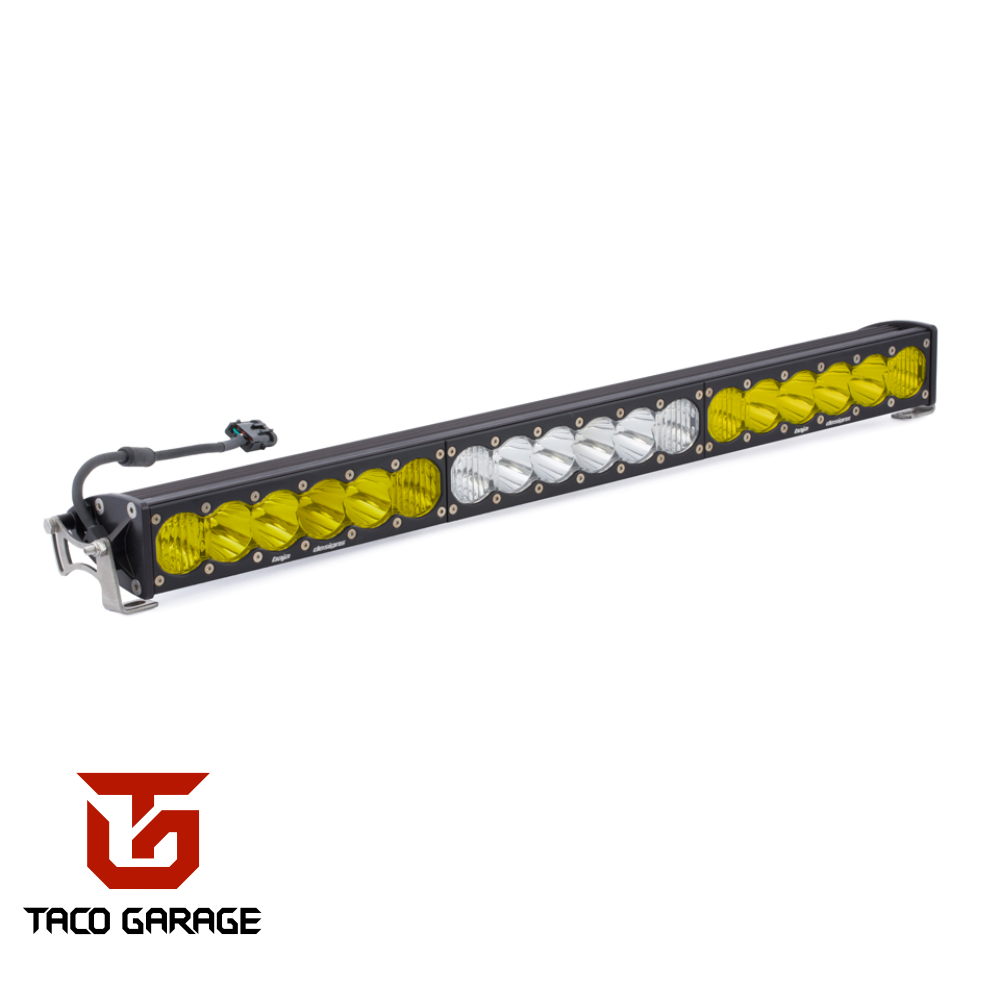

Baja Designs OnX6 Dual Control Amber/White LED Light Bar

Baja Designs OnX6 Dual Control Amber/White LED Light Bar

$1,149.95 USD
$1,149.95 USD
Shipping calculated at checkout.
Size

Fitment Notice: Please verify compatibility with your vehicle before ordering. If you're unsure whether this product fits your Tacoma, contact us in the chatbot and we'll help confirm.

Vehicle modifications may affect product compatibility.

Now you can have the best of both worlds with the OnX6™ Dual Control LED Light Bar. With the addition of another power cord and switch, you have the ability to control the inner and outer sections individually. This configuration provides a versatile package by allowing you to have one light bar with both amber and white light. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.


This bar is equipped with BMT – Battery Management Technology

-Elimination Of Flickering at Low Voltage

-Added Protection to Vehicle Wiring and Systems

-Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens:
- (30") (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
-(40") (High) 39,220 (Low) 32,760 Utilizing 24 Cree LEDs
Wattage/Amps:
- (30") (High) 278W / 21.7A (Low) 222W / 17.1A
- (40") (High) 340W / 26.8A (Low) 284W / 22.4A
Dimensions: 30"/40" x 4.29" x 2.69"
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

  • OnX6™ Dual Control LED Light Bar
  • Mounting Brackets
  • Hardware
  • Hi-Low Dongle



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance


Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
